How Long Does Faux Leather Last:Durability, Factors & Care Guide

On average, high-quality faux leather lasts between 2 to 5 years, though premium polyurethane (PU) formulations can extend up to 10 years with proper maintenance, while low-grade polyvinyl chloride (PVC) may begin to peel or crack within 1 to 2 years.

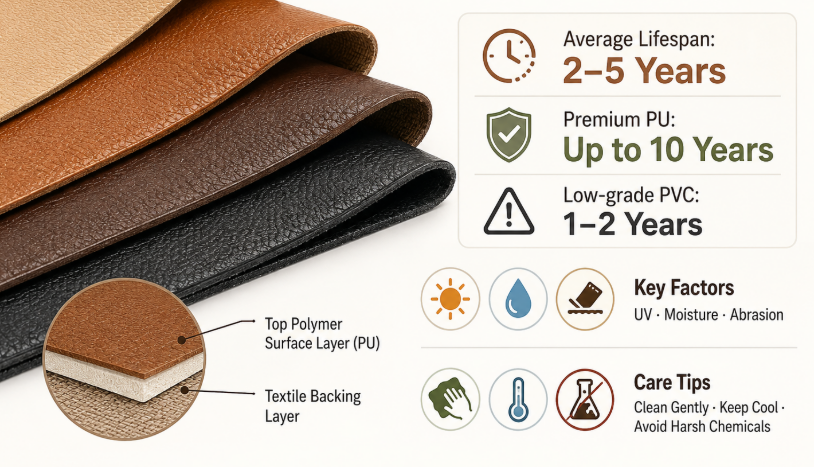

At a Glance

What Is Faux Leather and Which Materials Are Commonly Used?

Faux leather is a multi-layered synthetic material designed to replicate the appearance and texture of animal hides, primarily composed of a textile backing coated with a plastic polymer resin such as polyurethane (PU) or polyvinyl chloride (PVC).

At a fundamental molecular and manufacturing level, faux leather is an engineered composite material. The production process involves laminating a liquid polymer layer onto a fibrous backing fabric. The backing fabric provides the tensile strength, tear resistance, and dimensional stability of the material, typically constructed from woven cotton, polyester, or non-woven microfiber. The polymer coating determines the surface performance, chemical resistance, tactile feel, and overall aesthetic appeal.

The two dominant polymers used in modern manufacturing are Polyurethane (PU) and Polyvinyl Chloride (PVC). Polyurethane-based synthetic leather is highly favored in high-end applications due to its soft, pliable texture and superior breathability. It features a microscopic cellular structure that allows minimal moisture vapor transmission, mimicking the thermal properties of genuine hide. Polyvinyl chloride, on the other hand, is a more rigid plasticizer-modified polymer. It exhibits high water resistance and surface hardness, making it ideal for heavy-duty commercial seating, though it is more prone to cracking over time as the integrated plasticizers migrate to the surface and evaporate.

Recently, material science has introduced advanced iterations to resolve the environmental and physical limitations of traditional synthetics. For instance, high-performance microfiber PU leather utilizes a non-woven three-dimensional network of ultra-fine fibers impregnated with high-density polyurethane resin, closely replicating the collagen structure of natural leather. Specialty decorative variants are also engineered for specific market demands, such as high-fashion upholstery, retail displays, and footwear. Designers seeking unique visual finishes often incorporate specialty textiles like Premium Glitter Faux Leather Fabric to achieve a high-brilliance metallic aesthetic without sacrificing the structural integrity of the underlying thermoplastic polyurethane layer.

Which Factors Influence the Durability of Faux Leather?

The durability and operational lifespan of faux leather are primarily influenced by polymer hydrolysis, UV-induced photo-oxidation, mechanical abrasion, plasticizer migration, and the structural quality of the backing fabric.

1. Polymer Hydrolysis and Moisture Exposure

   Hydrolysis is the chemical breakdown of the polyurethane polymer chains due to reaction with water molecules. In humid environments, water molecules slowly penetrate the polyurethane layer, cleaving the ester or ether linkages in the polymer backbone. Polyester-based polyurethanes are highly susceptible to this degradation pathway, leading to a sticky surface texture, cracking, and eventual peeling of the coating. Polyether-based polyurethanes offer superior hydrolysis resistance, making them more suitable for high-humidity and marine environments.

2. Ultraviolet (UV) Radiation and Photo-Oxidation

   Exposing synthetic polymers to solar radiation initiates photo-oxidative degradation. Ultraviolet rays break down the carbon-carbon bonds within the polymer chain, generating free radicals that propagate chain scission. This structural degradation manifests visually as color fading, yellowing of white polymers, and a loss of elasticity. As the polymer chains become shorter and more brittle, the faux leather surface loses its ability to flex, leading to hairline fractures under minor mechanical loads.

3. Mechanical Friction and Cyclic Flexing

   Faux leather applications, particularly in commercial seating and automotive interiors, are subjected to continuous mechanical stresses. Cyclic flexing causes fatigue along the stress concentration points, usually where the fabric conforms to seams or curves. If the adhesion between the polymer top layer and the textile backing is insufficient, shear forces will cause delamination. Over time, friction from daily contact wears down the protective topcoat, exposing the vulnerable pigmented layer beneath.

Optimal Operating Temperature range: To maintain maximum polymer stability, faux leather products perform best within a controlled temperature range of 15°C to 25°C, as extreme thermal expansion or contraction accelerates mechanical cracking.

How Should You Care for Faux Leather to Extend Its Lifespan?

To maximize the operational lifespan of faux leather, you must implement a structured maintenance protocol that includes regular cleaning with pH-neutral solutions, avoiding lipid-based conditioners, and mitigating direct thermal exposure.

Proper maintenance of synthetic polymer coatings differs significantly from natural hide care. Because polyurethane and PVC are non-porous thermoplastic resins, they do not absorb natural oils or traditional leather conditioning creams. In fact, applying heavy oils or lipid-based conditioners to synthetic leather can be highly detrimental. These organic compounds can chemically interact with the polymer surface, trapping dust and atmospheric pollutants, or acting as a solvent that accelerates the extraction of essential plasticizers from the resin layer, resulting in premature hardening and embrittlement.

The standard cleaning protocol involves wipe-downs using a clean microfiber cloth dampened with a highly diluted, pH-neutral soap solution. This process removes surface oils, sweat, and environmental particulates that can slowly corrode the polyurethane topcoat. For high-traffic commercial environments, disinfection must be approached with caution. Harsh chemical solvents, particularly alcohol-based sanitizers, acetone, and ammonia, rapidly dissolve the protective clear coats applied to the synthetic leather, stripping the material of its stain-resistant properties and exposing the base polymer to accelerated mechanical wear.

Storage and environmental controls also play a critical role in preserving the physical structure of faux leather products. Synthetic items should be stored in well-ventilated spaces away from direct sunlight and centralized heating vents. High temperatures dry out the synthetic resins, causing thermal degradation of the polymer matrix. When storing garments, bags, or rolled materials, maintaining a relaxed structural form prevents permanent creasing, which can stress the material and lead to micro-fracturing along the fold lines.

Key Maintenance and Preservation Tips

• Chemical Compatibility Avoidance: Never use cleaners containing petroleum distillates, alcohol, acetone, or abrasive scrubbers, as these chemicals strip the protective polyurethane topcoat.

• Prompt Spill Remediation: Liquid spills, particularly acidic substances like coffee, wine, or citrus juices, must be blotted immediately with a dry cloth to prevent chemical staining of the polymer matrix.

• Dye Transfer Prevention: Keep light-colored faux leather products away from unwashed indigo denim or highly pigmented fabrics to avoid permanent molecular dye migration.

• Thermal Protection Standards: Ensure furniture or upholstered items are positioned at least 50 centimeters away from radiators, heaters, or continuous heating ducts to prevent localized polymer drying.

Are There Differences in Lifespan Between Faux and Genuine Leather?

Genuine leather typically boasts an operational lifespan of 10 to 20 years or more, whereas standard faux leather generally lasts 2 to 5 years due to fundamental differences in molecular structure, fiber cohesion, and wear mechanics.

The disparity in durability between synthetic and natural leather is rooted in their microstructural compositions. Genuine leather is composed of a dense, three-dimensional, naturally interwoven network of collagen protein fibers. This protein matrix distributes mechanical stress evenly in all directions, allowing the material to withstand high tensile loads, repeated flexing, and surface abrasion. Furthermore, natural leather develops a patina over time; rather than degrading, the surface fibers compress and self-polish with usage, enhancing its aesthetic and structural resilience.

In contrast, synthetic leather relies on a laminated polymer film bonded to a two-dimensional woven or knitted substrate. While polyurethane offers high initial tensile strength, it lacks the self-healing and breathing capabilities of organic collagen. When a tear or micro-crack occurs in the polymer layer, there is no underlying fibrous network to distribute the stress. Consequently, the damage rapidly propagates across the surface, leading to localized delamination, peeling, and the complete exposure of the base textile fabric.

For a comprehensive analysis of how these materials compare across performance, environmental footprint, and cost structures, readers can consult the detailed Faux Leather vs. Real Leather Comparison Guide, which explores the operational lifespans of both materials under commercial use.

Additionally, the physical behavior under thermal and environmental stresses differs significantly:

• Pore Structure and Breathability: Natural leather contains microscopic pores that allow air and moisture transmission, regulating internal moisture content. Faux leather is largely impermeable, trapping moisture against the surface if not engineered with specific micro-perforations.

• Aging and Degradation: Natural leather degrades through drying and fiber stiffening, which can be reversed with natural lipid conditioners. Faux leather degrades through irreversible polymer chain scission, peeling, and chemical hydrolysis, which cannot be restored once initiated.

• Repairability: Scuffs and deep scratches on genuine leather can often be buffed, re-dyed, or filled. Damage to synthetic polymer layers, particularly peeling or delamination, is typically unrepairable and requires complete panel replacement.

What Should Consumers Consider When Choosing Long‑Lasting Faux Leather Products?

When selecting highly durable faux leather, buyers should evaluate key technical specifications including the polymer type, backing material weight, abrasion resistance rating, and the specific design features implemented for the target application.

1. Polymer Composition and Resin Quality

   The choice of polymer determines the environmental resistance of the final product. For applications demanding maximum longevity, buyers should specify premium polyurethane resins over low-cost PVC. High-grade PU materials are formulated with advanced stabilizers that resist hydrolytic attack and UV yellowing. In high-end upholstery and luxury goods, sourcing materials like the B251 Nappa Textured Premium PU Faux Leather ensures a high-density resin surface that replicates the exquisite grain structure of authentic Nappa leather while delivering superior wear resistance and elastic recovery.

2. Backing Fabric Construction and Density

   The backing fabric serves as the structural backbone of synthetic leather. Thin, loosely woven polyester backings are highly susceptible to seam slippage and tearing under load. For high-durability requirements, seek backing structures composed of heavy knitted cotton, brushed polyester, or advanced non-woven microfibers. These materials provide a high surface area for polymer adhesion, minimizing the risk of delamination when subjected to cyclic flexing or sharp impact forces.

3. Performance Certifications and Abrasion Ratings

   Industrial and commercial buyers should look for standardized testing metrics to verify durability claims. The Wyzenbeek double-rub method (ASTM D4157) and the Martindale abrasion test (ISO 12947) are industry standards for measuring wear resistance. For high-traffic contract upholstery, products should withstand at least 50,000 to 100,000 double rubs. Additionally, verify if the material has passed the Jungle Test (typically ISO 1419 Method C), which subjects the polymer to accelerated heat and humidity to guarantee resistance to hydrolysis over a simulated 5 to 7-year period.

Purchasing Selection Matrix
